BOPP BOPET Extrusion Coating Lamination Line Protective Film Precoated

BOPP BOPET Extrusion Coating Lamination Line Protective Film Precoated
BOPP BOPET Extrusion Coating Lamination Line Protective Film Precoated BOPP BOPET Extrusion Coating Lamination Line Protective Film Precoated BOPP BOPET Extrusion Coating Lamination Line Protective Film Precoated
Basic Information
Place of Origin: CHINA
Brand Name: unitedwin
Model Number: UW-1950/2300
Minimum Order Quantity: 1 set
Price: USD
Payment Terms: L/C, T/T
Get Best Price Contact Now
Type: Protective Film Series Mechanical Speed: Maximum 250m/min
Machine Specifications: 1950mm, 2300mm Product Effective Width: 1280-1850mm, 1600-2200mm
Extrusion Resin: LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA Extrusion Thickness: 4-15μm
Manual Die Thickness Uniformity: ≤±5% Unwinding Diameter: Maximum Φ800mm
Unwinding Substrate: BOPP, BOPET Diameter Of Composite Cooling Roll: Φ700mm
Rewinding Diameter: Maximum Φ800mm Condition: New
Warranty: 1 Year
Highlight:

Precoated Extrusion Coating Lamination Line

,

BOPET Extrusion Coating Lamination Line

,

Film Extrusion Coating Lamination Line

BOPP BOPET Protective Film Pre-coated Film Extrusion Coating Lamination Line





Feature:



1. Tension control: automatic tension control for unwinding and rewinding

2. Control method: man-machine interface operation, the extrusion thickness is automatically and accurately calculated by the computer, and the whole machine is controlled by linkage

3. Inverter: imported brand AC digital vector control inverter

4. Diameter of composite cooling roll: jacketed spiral cooling water forced heat exchange structure

5. Factory requirements: 27m*13.5m*5.5m(L*W*H)





Technical Parameter:



Mechanical speed Max. 250m/min
Machine specifications
1950mm, 2300mm
Product effective width
1280-1850mm, 1600-2200mm
Extrusion volume
UW-80* Max.extrusion volume 200kg/h;
UW-90* Max.extrusion volume 300kg/h;
UW-100* Max.extrusion volume 400kg/h (when extruding LDPE)
Extrusion motor power
UW-80 drive motor 45kw;
UW-90 drive motor 55kw;
UW-100 drive motor 75kw
Extrusion resin
LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA and other coating grade resins (mainly EVA)
AC agent coating and oven smooth roll coating, 7.5m horizontal ove
Extrusion thickness 4-15μm
Manual die thickness uniformity ≤±5%
Unwinding diameter Max. Φ800mm
Unwinding substrate BOPP, BOPET
Diameter of composite cooling roll Φ700mm
Rewinding diameter Max. Φ800mm

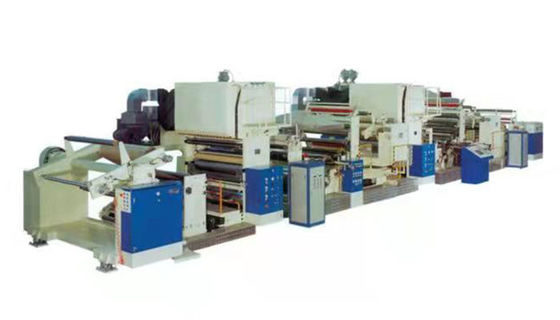

Machine Photo:

BOPP BOPET Extrusion Coating Lamination Line Protective Film Precoated 0

FAQ:



1.Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.


2.Do you have quality certificate?
Yes we have CE, SGS etc.


3.What's the delivery time?
Around 20~30days, however, based on order.


4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.


5.What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.



6. Is your machine automatic or manual ?
Automatic.



7. What is the machine warranty?

One Year.
