CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | UW |
| Model Number: | UWZ120-2400 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Name: | Extrusion Coating Process | Warranty: | 1 Year |
|---|---|---|---|
| Type: | UWZ120-2400 | After-sales Service: | Online Support,Video Technical Support, Free Spare Parts |
| Production Speed: | 100m~236m/min | Product Width: | 1000mm~3700mm |
| Brand Name: | UW | Color: | Any Color |
| High Light: | Ldpe Lamination Machine,Non Woven Fabric Lamination Machine,Extruder Lamination Machine |
||

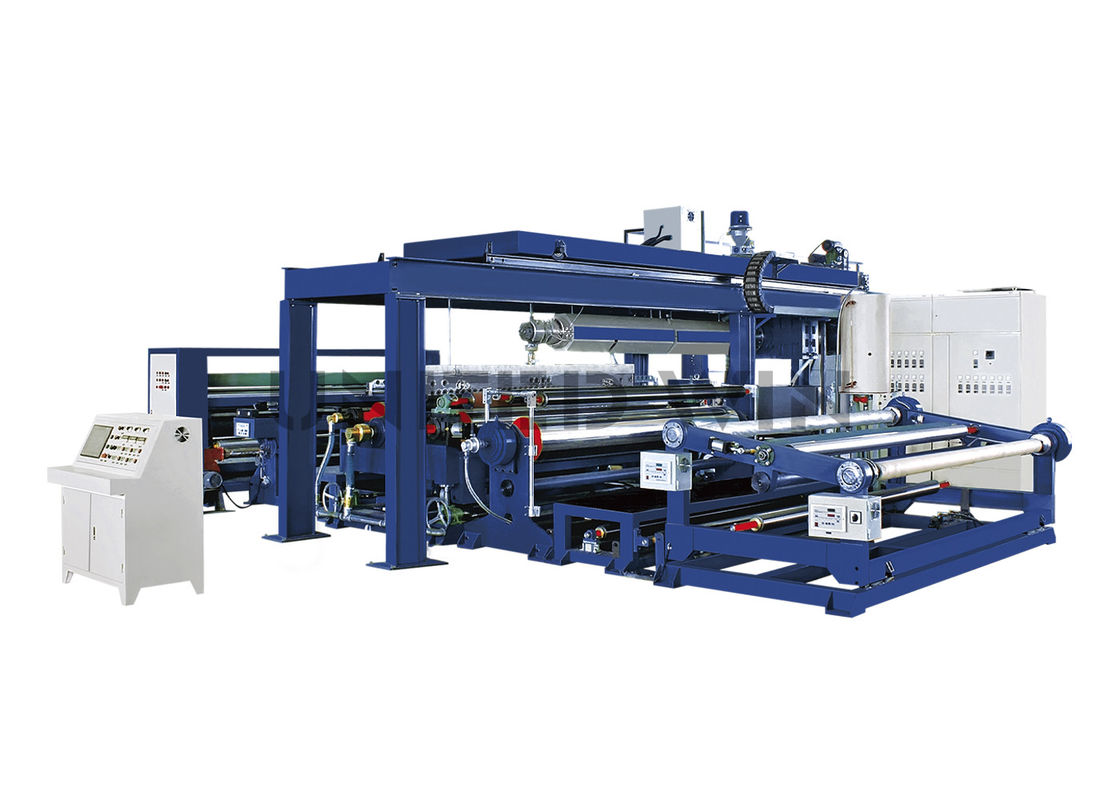

Automatic Ldpe PP Extrusion Coating Lamination Machine For Woven Bag
Description:
UW-M series plastic extrusion laminating line using polypropylene (PP) and low density polyethylene (LDPE) as raw material, after hot melt extrudering film from the barrel, evenly coating at all kinds of substrates such as: woven bag, kraft paper, cloth surface laminating, under the action of laminating device, the substrate bonding strengthof plastic film and substrates ≥ 3N, it can be single or double-sided laminating at one time.
▪ Based on glue dot transfer technology, glue is evenly transferred to lining of fabric in the form of dots, and then laminate to shell of fabric.The laminated fabric is resistant to Resistant to dry cleaning, sand washing and washing
▪ Equipped with automatic hydraulic rectifying device, pneumatic rectifying device, conveyor belt, wire distribution device, cutting device, blowing device, with a high degree of automation procedures, reduce the operator and reduce the cost.
▪ The laminated material can rapid cooling to ensure the best laminating effect as it equipped with a cooling device.
▪ The machine use frequency linkage to achieve the whole machine synchronous speed which makes good maneuverability on machine.
Specifications:
| Model | UW-M1100 | UW-M1300 | UW-M1500 | UW-M1800 |
| Extrusion die width | 1200mm | 1400mm | 1800mm | 2000mm |
| Coating width | 500-1000mm | 600-1250mm | 800-1500mm | 900-1700mm |
| Max.Coating speed | 10-150m/min | 10-150m/min | 10-150m/min | 10-150m/min |
| Coating thickness | 0.01-0.03mm | 0.01-0.03mm | 0.01-0.03mm | 0.01-0.03mm |
| L/d ratio for screw | 32:1 | 32:1 | 32:1 | 32:1 |
| Rewinding roll diameter | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm |
| Overall size | 12500*7000*3200mm | 13000*8000*3200mm | 12000*9000*3200mm | 13000*12000*3200mm |
| Total power | 70kw | 80kw | 100kw | 130kw |
| Mirror cool roll diameter | Ø510mm | Ø510mm | Ø510mm | Ø510mm |
| Adopt material | Non wovenBOPPAluminum foil | |||
Details:
FAQ:
1.Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2.Do you have quality certificate?
Yes we have CE, SGS etc.
3.What's the delivery time?
Around 20~30days, however, based on order.
4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.
6. Is your machine automatic or manual ?
Automatic.
7. What is the machine warranty?
One Year.
