CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | UW |
| Model Number: | UW-M1800 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Name: | Lamination Coating Machine | Extruding Material: | Jumbo Bag |
|---|---|---|---|
| Warranty: | 1 Year | Type: | UW-M1800 |
| After-sales Service: | Online Support,Video Technical Support, Free Spare Parts | Production Speed: | 10-150m/minute |
| Product Width: | 900-1700millimeter | Brand Name: | UW |
| Color: | Any Color | Material: | Jumbo Bag Fabric |
| Power:: | 200KW | Warranty Of Core Components: | 1 Year |
| High Light: | Jumbo Bag Extrusion Coating Lamination Line,Woven Sack Extrusion Coating Lamination Line,Lamination Coating Machine |
||

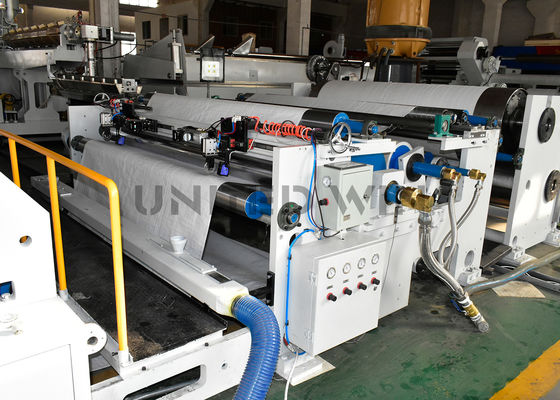

Jumbo Bag Extrusion Coating Lamination Line Woven Sack Double sided Automatic Aliging Film Coating Machine UW-M1800
Description:
Won the national invention patent double-sided automatic plate laminating machine, adopted the vector frequency conversion technology of OPP film unreeling automatic control, and the use of hi-tech servo control, synchronization control, electric control, color code sensor on the version and other advanced technology. Equipment performance up to the advanced world level, solve the high-end packag-ing products, improve the grade of product packaging and security capability. Suitable for woven bag cylinder double bonded OPP films and automatic version of the film as well as ordinary film.
Specifications:
| Model | UW-M1100 | UW-M1300 | UW-M1500 | UW-M1800 |
| Extrusion die width | 1100millimeter | 1300mm | 1700mm | 2000mm |
| Coating width | 500-1000mm | 700-1250mm | 850-1500mm | 900-1700mm |
| Max.Coating speed | 10-150m/min | 10-150m/min | 10-150m/min | 10-150m/min |
| Coating thickness | 0.01-0.03mm | 0.01-0.03mm | 0.01-0.03mm | 0.01-0.03mm |
| L/d ratio for screw | 32:1 | 32:1 | 32:1 | 32:1 |
| Rewinding roll diameter | Ø1200mm | Ø1200mm | Ø1200mm | Ø1200mm |
| Overall size | 11500*7000*3200mm | 12500*8000*3200mm | 12600*9000*3200mm | 13000*12000*3200mm |
| Total power | 70kw | 80kw | 100kw | 130kw |
| Mirror cool roll diameter | Ø510mm | Ø510mm | Ø510mm | Ø510mm |
| Adopt material | ||||
Application:
Company information:
FAQ:
1.Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2.Do you have quality certificate?
Yes we have CE, SGS etc.
3.What's the delivery time?
Around 20~30days, however, based on order.
4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.
6. Is your machine automatic or manual ?
Automatic.
