CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | UW-1950/2300 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Payment Terms: | L/C, T/T |
| Type: | Pre-coated Film (Protective Film) Series | Mechanical Speed: | Max. 250m/min |
|---|---|---|---|
| Machine Specifications: | 1950mm, 2300mm | Product Effective Width: | 1280-1850mm, 1600-2200mm |
| Extrusion Resin: | LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA | Extrusion Thickness: | 4～15μm |
| Manual Die Thickness Uniformity: | ≤±5% | Unwinding Diameter: | Max. Φ800mm |
| Unwinding Substrate: | BOPP, BOPET | Diameter Of Composite Cooling Roll: | Φ700mm |
| Rewinding Diameter: | Max. Φ800mm | Condition: | New |
| Warranty: | 1 Year | ||
| High Light: | Protective Film Extrusion Coating Lamination Line,250m/min Extrusion Coating Lamination Line,Extrusion Coating Lamination Line 2300 mm |
||
Pre-coating film Protective film Extrusion Coating Lamination Line
Feature:
1. Tension control: automatic tension control for unwinding and rewinding
2. Control method: man-machine interface operation, the extrusion thickness is automatically and accurately calculated by the computer, and the whole machine is controlled by linkage
3. Inverter: imported brand AC digital vector control inverter
4. Diameter of composite cooling roll: jacketed spiral cooling water forced heat exchange structure
5. AC agent coating and oven: smooth roll coating, 7.5m horizontal ove
Technical Parameter:
| Mechanical speed | Max. 250m/min |
| Machine specifications |
1950mm, 2300mm
|
| Product effective width |
1280-1850mm, 1600-2200mm
|
| Extrusion volume |
UW-80* Maximum extrusion volume 200kg/h;
UW-90* Maximum extrusion volume 300kg/h;
UW-100* Maximum extrusion volume 400kg/h (when extruding LDPE)
|
| Extrusion motor power |
UW-80 drive motor 45kw;
UW-90 drive motor 55kw;
UW-100 drive motor 75kw
|
| Extrusion resin |
LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA and other coating grade resins (mainly EVA)
|
| Extrusion thickness | 4～15μm |
| Manual die thickness uniformity | ≤±5% |
| Unwinding diameter | Maximum Φ800mm |
| Unwinding substrate | BOPP, BOPET |
| Diameter of composite cooling roll | Φ700mm |
| Rewinding diameter | Maximum Φ800mm |
| Factory requirements |
27m*13.5m*5.5m(L*W*H)
|

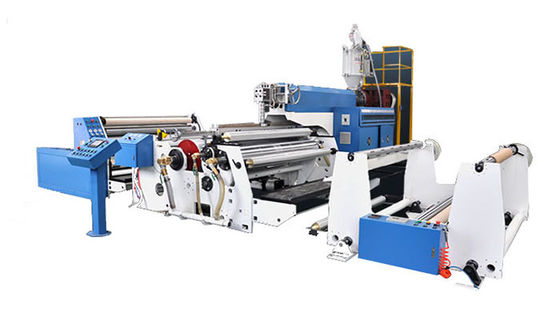

Machine Photo:
FAQ:
1.Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2.Do you have quality certificate?
Yes we have CE, SGS etc.
3.What's the delivery time?
Around 20~30days, however, based on order.
4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5.What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.
6. Is your machine automatic or manual ?
Automatic.
7. What is the machine warranty?
One Year.
