Duplex Co Extrusion Coating Lamination Line 200m / Min 1450mm

Duplex Co Extrusion Coating Lamination Line 200m / Min 1450mm
Duplex Co Extrusion Coating Lamination Line 200m / Min 1450mm Duplex Co Extrusion Coating Lamination Line 200m / Min 1450mm Duplex Co Extrusion Coating Lamination Line 200m / Min 1450mm
Basic Information
Place of Origin: CHINA
Brand Name: unitedwin
Model Number: UW-1200/1450/1700
Minimum Order Quantity: 1 set
Price: USD
Payment Terms: L/C, T/T
Get Best Price Contact Now
Type: Duplex Coextrusion Extrusion Laminating Line Machine Specification: 1200mm, 1450mm, 1700mm
Max.extrusion Volume: 120kg/h Machine Speed: 200 Or 300m/min
Extrusion Motor Power: Drive Motor 22kw Extrusion Resin: LDPE, LLDPE, PP, EVA, EAA, EMA, EMAA
Extrusion Thickness: 6～40μm Manual Die Thickness Uniformity: ≤±5%
Unwinding Diameter: Max. Φ800 Or Φ1200mm Unwinding Substrate: BOPP, BOPET, BOPA, Thin Paper(20-100gsm)
Diameter Of Interlayer Unwinding: Max. Φ800 Or 1200mm Sandwich Unwinding Substrate: BOPP, PET, MCPP, MPET, Aluminium Foil, Paper
Diameter Of Composite Cooling Roll: Φ700 Or 800mm Rewinding Diameter: Φ800 Or 1000mm
Warranty: 1 Year Condition: New
Highlight:

Duplex Co Extrusion Coating Lamination Line

,

Extrusion Coating Lamination Line 200m/Min

,

1450 mm Extrusion Coating Lamination Line

Duplex Co-extrusion Extrusion Coating Lamination Line





Feature:



1. Extruder: 4 sets (manufactured by the patented technology of "chaos mixing low energy consumption extruder").
2. AC agent coating and oven: with a bachelor and scraper wire coating roller and a 4.5m oven.
3. Diameter of composite cooling roll: jacketed spiral cooling water forced heat exchange structure.
4. Tension control: automatic tension control for unwinding and interlayer unwinding, the maximum tension is 400N. Fully automatic tension control and taper control for winding, the maximum tension is 400N.
5. Control method: man-machine interface operation, the extrusion thickness is automatically and accurately calculated by the computer, and the whole machine is controlled by linkage.
6. Diameter of interlayer unwinding: high-speed automatic material change on both sides of aluminum foil
7. Inverter: imported brand AC digital vector control inverter.
8. Requirements for the working workshop of the whole machine: 35.5m*14.5m*5 m(L*W*H).




Technical Parameter:



Machine speed 200 or 300m/min
Machine specification
1200mm, 1450mm, 1700mm
Product effective width
1200 model (600～1100mm),
1450 model (800～1350mm),
1700 model (1000～1600mm)
Extrusion volume
UW-65 max.extrusion volume is 120kg/h;
UW-80 max.extrusion volume is 200kg/h;
UW-90 max.extrusion volume is 300kg/h (when extruding LDPE)
Power of extrusion motor
UW-65 drive motor 22kw;
UW-80 drive motor 45kw;
UW-90 drive motor 55kw
Extrusion resin
LDPE, LLDPE, PP, EVA, EAA, EMAA, EMAA and other coating grade resins
Extrusion thickness 6～40μm
Manual die thickness uniformity ≤±5%
Unwinding diameter Max. Φ800mm or Φ1200mm
Unwinding substrate BOPP, BOPET, BOPA, tissue paper (20-100gsm)
Diameter of interlayer unwinding Max.Φ800mm or Φ1200mm
Sandwich unwinding substrate BOPP, PET, MCPP, MPET, aluminium foil, paper
Diameter of composite cooling roll Φ700mm or Φ800mm
Rewinding diameter Max. Φ800mm or Φ1000mm

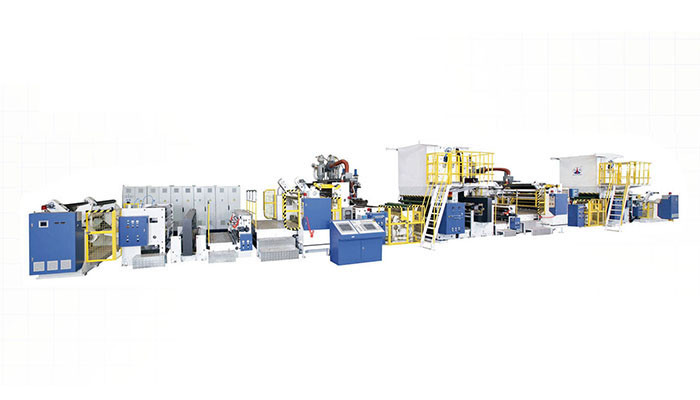

Machine Photo:

Duplex Co Extrusion Coating Lamination Line 200m / Min 1450mm 0

FAQ:



1.Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.


2.Do you have quality certificate?
Yes we have CE, SGS etc.


3.What's the delivery time?
Around 20~30days, however, based on order.


4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.


5.What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.



6. Is your machine automatic or manual ?
Automatic.



7. What is the machine warranty?

One Year.
