CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | SYJ-800E |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Maximum Reel Diameter: | 1270mm | Inside Core Diameter: | 102mm |
|---|---|---|---|
| Model: | SYJ-800E | Max Feeding Width: | 800mm |
| Printing Speed: | 80-120m/min | Max Printing Area: | 650 Mm |
| Max Material Feeding: | 1200x820 Mm | Total Power: | 18kw |
| Dimensions: | 1600*3000*2500 | Automatic Grade: | Automatic |
| Highlight: | 6colors plastic bag flexo printing machine,polythene roll to roll flexo printing machine,6colors roll to roll flexo printing machine |
||

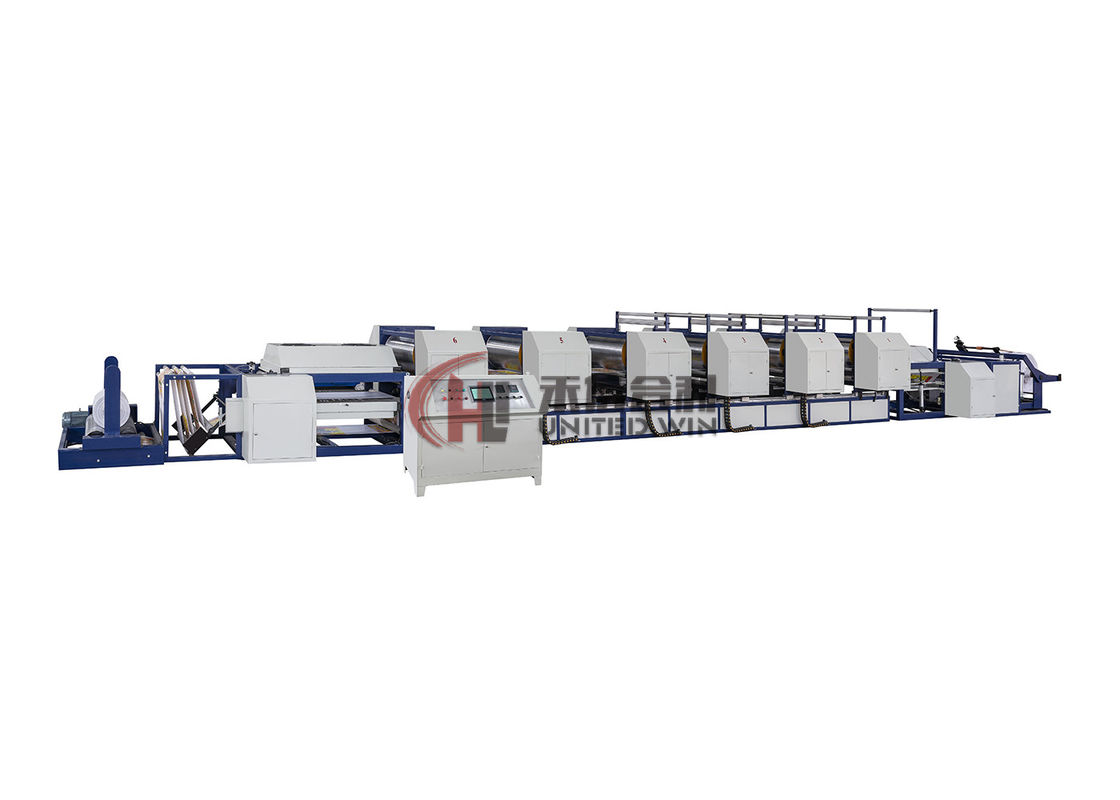

Polythene Bag Plastic Bag Flexo Printing Machine Roll to Roll for 6 colors
CONTROL SYSTEM OF THE MACHINE
The machine uses 1 No. Programmable digital AC drive suitable for 7.5-hp.ac. (main motor)
The machine uses 1 No. Controls & monitor for pneumatic brake. (unwind motor)
The machine uses 1 No. Programmable digital AC drive suitable for 5-hp.ac. (rewind motor)
The machine uses Power on – off switch for A.C. Motors.
The machine uses Power on - off switch for web guiding system.
The machine uses 1 No. Main motor pot.
The machine uses 1 No. Rewind motor pot with monitor.
The machine uses 2 Nos. Inching switch. (jogging).
The machine uses 1 No. Temperature controller. (digital).
The machine uses 1 No. Electronic bag counter. (digital).
The machine uses 1 No. Two-step heating zone switch.
The machine uses Contactors and overload relays.
The machine uses 1 No. Emergency stop.
The machine uses 1 No. Auto stop for break inweb.
ALL THE BEARING WILL BE OF FAG
SPARES
• RUBBER ROLLER---1.PCS
• ANILOX ROLLER----1.PCS
• OIL CAN --1.PCS
• WINDER GEAR SET----1.NOS
• HEATER --3.PCS
• TOOL KIT --1.NOS
ELECTRICAL CONNECTED LOAD HP*(ALL THE MOTORS OF ABB)
1 No. Main Motor: 7.5-hp.ac.
1 No. Rewind Motor: 5.0-hp.ac with gearbox by Bonifiglioli.
1 No. Blowers: 3.0-hp.ac.
1 No. Blower: 1.0-hp.ac.
1 No. Web Guiding System: 0.5-hp.ac.
Total Power Load is 17-hp(motors). + 30-hp(heaters).
Specifications:
| Model | SYJ-800E |
| Diameter of Roller | ≤φ1500mm |
| Max feeding width | 800mm |
| Max printing width | 650mm |
| Machinery production capacity | 150m/min |
| Normal printing speed | 80-120m/min |
| Gas consumption | 1M3/min |
| Fan power | 10KW |
| Total power | 18KW |
| Dimensions | 16000*3000*2500mm |
Application:
This machines is special for printing woven bags. The color register can be adjusting positive rotation and clockwise 360,Without tum off the power. the speed is quick, the color printing is precise; simultaneously the big printing roller may carry on the crosswise adjustment, the adjustment quantity is 20mm by PLC instead of original circuit board control. It is steady in operation and speed changing, and can be easily operated. The character is evenly and clear. with few vulnerable part.
FAQ:
1.Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
15-20 days for order quantity; depends on the season and quantity, usually less than 30 days.
4. Can I get a discount?
Yes, for the order quantity more than 2 pcs, please contact us to get the best price.
5. Do you have training?
Yes, we will send our technical manual & video
6.How to deal with broken parts?
we guarantee 1 year warranty free of charge.
7. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
