CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | SYJ-800E |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Print Width Max: | 864 Mm | Printing Possibilities: | 6+0,5+1,4+2,3+3 |
|---|---|---|---|
| Model: | SYJ-800E | Max Feeding Width: | 800mm |
| Printing Speed: | 80-120m/min | Max Printing Area: | 650 Mm |
| Max Material Feeding: | 1200x820 Mm | Total Power: | 18kw |
| Dimensions: | 1600*3000*2500 | Automatic Grade: | Automatic |
| High Light: | plc woven sack flexo printing machine,4color woven sack flexo printing machine,8color woven sack flexo printing machine |
||

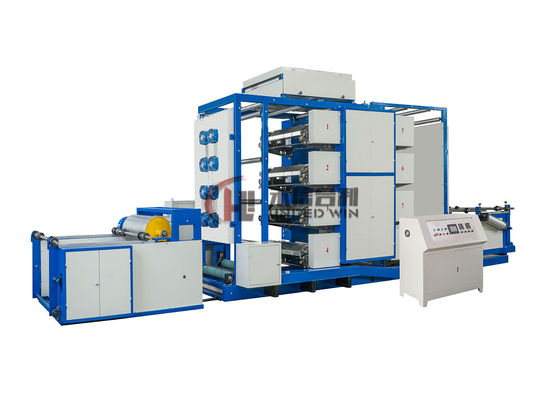

Roll to Roll Polythene Bag Plastic Bag Flexo Printing Machine For Woven Sacks 4 To 8 Color
INK DRYING SYSTEM
Mainly consist of AC frequency drive (ABB Make) controlled heavy-duty blower with connectiing duct to deliver fresh air.
Ink drying is obtained by blowing hot air on the web surface through air nozzles. The optimized airflow minimizes heat consumption & avoids solvent retention in the printed substrates.
Electric heating based drying system is composed of mainly electric heater, drying chambers with solvent extraction, connecting ducts, exhaust system etc.It recirculates the same hot air and this result in less power consumption
OUT-FEED UNIT
Out feed system is separately driven by AC motor with gear box . (Closed loop control) and consist of hard chrome plated nip roll, pressure rubber roller etc. Out-feed system pulls the substrate from printing units and simultaneously maintains required set tension (thru load cells) between printing zones and also maintains printing registration
REWIND UNIT
The whole function is controlled and supervised by the controller.
The rewinder unit consists of:
1 No. Surface rewind station,
Maximum reel outer diameter is 1270 mm, and maximum reel weight is 500 kgs.
Rewinding shaft supported by bearing on both sides.
Rewind tension control system consists of
1 No. 5-hp.ac motor controlled by
Digital programmable ac drive with load cell back up drive duly synchronised with main motor to be controlled from main control panel.
1 No. Manual shaft for 102 mm core I.D. is provided.
The drive from printing frame to rewinding frame is by means of shafts connected by
1 Nos. Gear box by Bonifiglioli is attached with motor on the surface winder
Specifications:
| Model | SYJ-800E |
| Diameter of Roller | ≤φ1500mm |
| Max feeding width | 800mm |
| Max printing width | 650mm |
| Machinery production capacity | 150m/min |
| Normal printing speed | 80-120m/min |
| Gas consumption | 1M3/min |
| Fan power | 10KW |
| Total power | 18KW |
| Dimensions | 16000*3000*2500mm |
Application:
This machines is special for printing woven bags. The color register can be adjusting positive rotation and clockwise 360,Without tum off the power. the speed is quick, the color printing is precise; simultaneously the big printing roller may carry on the crosswise adjustment, the adjustment quantity is 20mm by PLC instead of original circuit board control. It is steady in operation and speed changing, and can be easily operated. The character is evenly and clear. with few vulnerable part.
FAQ:
1.Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
15-20 days for order quantity; depends on the season and quantity, usually less than 30 days.
4. Can I get a discount?
Yes, for the order quantity more than 2 pcs, please contact us to get the best price.
5. Do you have training?
Yes, we will send our technical manual & video
6.How to deal with broken parts?
we guarantee 1 year warranty free of charge.
7. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
