CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | SYJ-800 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Name: | Flex Printing Machine | Model: | SBY800 |
|---|---|---|---|
| Max Feeding Width: | 1300*800mm | Printing Speed: | 50~70pcs/min |
| Max Printing Area: | 1000x650 Mm | Total Power: | 4kw |
| Dimensions: | 10000*2000*1300mm | Automatic Grade: | Automatic |
| Payment: | T/C,T/T | Color: | 4 |
| Highlight: | pp woven sack flexo printing machine,4colour woven sack flexo printing machine |
||

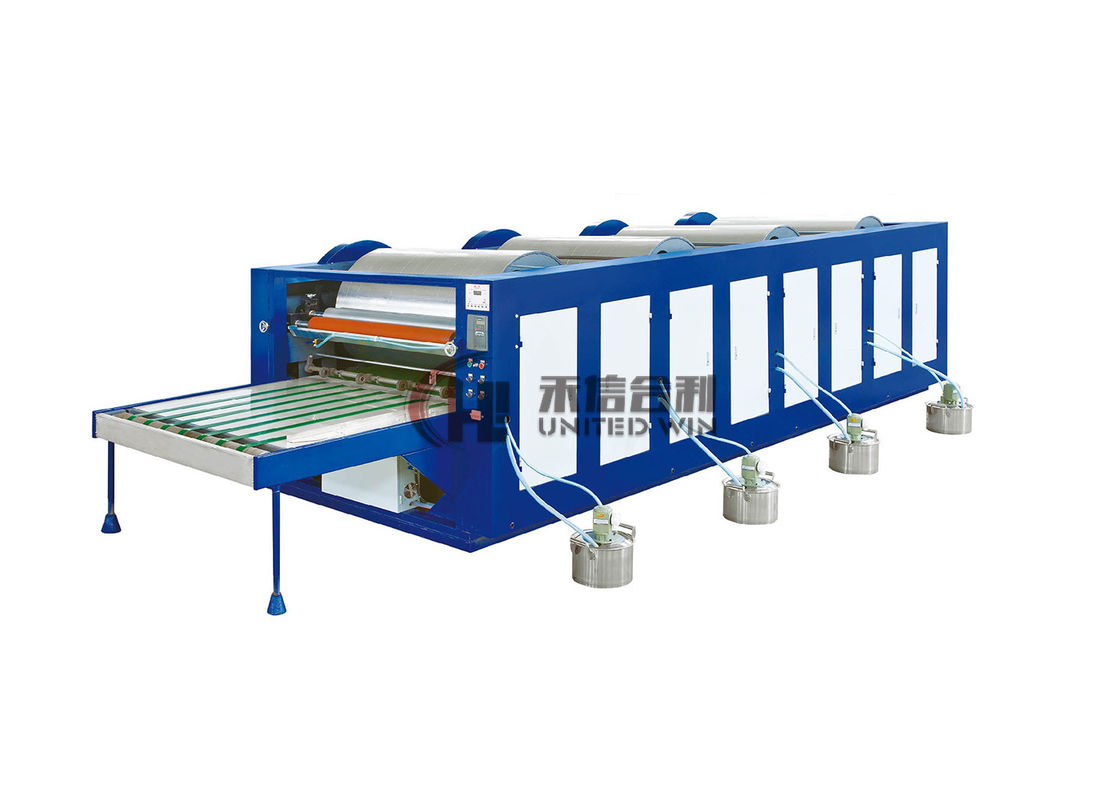

PP Woven Sack Printing Machine SBY-800 4-8 Colors Flexo Printing Machine
The printing machine are mainly used for printing container bag and jumbo bag. The control part of the machine adapts (PLC)made by Mitsubishi to centralize control. The linkage pneumatic among photo magnetic localized device, auto printing engaging and disengaging gear and auto counter adapts inverter control. The operation is stable and energy saving. The transfer of ink adapts reticulate pattern roller. The color is more uniformity and satiation.
The Main technical parameter
The max. feeding area of the machine is 1850×1350mm(L×W)
The max. printing area of the machine is 1600×1000mm(L×W)
The thickness of printing plate of the machine is 4-6mm
The Printing speed of the machine is 200-1200 pcs/h
The Power used by the machine is 3kw
The Overall dimensions of the machine is 5800×2000×1600mm
Specifications for the Four-color printing machine for container bag
1,MITSUBISHI PLC of Japan controller
2,Photomagnetic localized device
3,Auto feed bags by linkage pneumatic
4,The transfer of ink by reticulate pattern roller
5,Inverter control speed
6,Auto counter , enactment counter alarm set
7,Auto printing engaging and disengaging gear set
8,Auto feed ink
9, 3m conveying device,1.5m Constant temperature oven (Optional )
Spare Parts List
Photoelectricity switch 1pc
Approach switch 2pcs
Relay 3pcs
Double side pastern 2rolls
Electromagnetism valve 1pc
Rubber roller 1pc1
Conveyer belt 1pc1
Specifications:
| Model | SYJ-800 4-8COLORS |
| Max feeding area LxW | 1300*800mm |
| Max printing width | 1150*750mm |
| Printing Length | ≤φ1200mm |
| Thickness of printing plate | 4~6mm |
| Print speed | 50-70pcs/min |
| Dimensions | 10000*1400*1300mm |
Applications:
FAQ:
1. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3.Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
4. What's the lead time for regular order?
15-20 days for order quantity; depends on the season and quantity, usually less than 30 days.
5. Can I get a discount?
Yes, for the order quantity more than 2 pcs, please contact us to get the best price.
6. Do you have training?
Yes, we will send our technical manual & video
7.How to deal with broken parts?
we guarantee 1 year warranty free of charge.
