CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | United Win |
| Model Number: | UW-D/S90×33-1000 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 3 months |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets/month |
| Name: | Plastic Extrusion Line | Max.Extrusion: | 320kg/h |
|---|---|---|---|
| Screw Design: | Single-screw | Processing Type: | Extruding Machine |
| SJJ Winder Speed: | 280m/min | SHW Winder Speed: | 400m/min |
| Dia Head Length: | 1000mm | Weight: | 27T |
| Condition: | New | Warranty: | 1 Year |
| High Light: | polypropylene tape extrusion line,tape extrusion line 320kg/h,tarpaulins tape extrusion line |
||
Pp Woven Bag Production Line Flat Yarn Tape Extrusion Line 320kg/h
UW plastic flat yarn double die stretching unit is specially designed for high-quality and high-performance PP and HDPE flat yarn.
Higher flat wire quality, very low consumption and better economic benefits
Application: woven bags, chemical bags, grain bags, cement bags, mesh bags, container bags, geotextiles, tarpaulins
Plastic extruding flat film stretching line is designed and manufactured by introducing and absorbing foreign advanced techniques, and by improving domestic equipment inadequacies~ It is suitable for forming, and rolling various flat yam of thermoplastic plastics, such as the polypropylene, high density polyethylene and linear low density polyethylene, etc.
Specification:
| Item | UW-D/S90×33-1000 | UW-D/S100×33-1100 | UW-D/S110×33-1300 | UW-D/S120×33-1500 |
| Max.Extrusion | 280kg/h | 320kg/h | 420kg/h | 500kg/h |
| Screw Dia. | Φ90mm | Φ110mm | Φ120mm | Φ130mm |
| scew RPM. | 20-100r/min | 20-100r/min | 20-100r/min | 20-100r/min |
| T Die Head Lip length | 900mm | 1100mm | 1300mm | 1500mm |
| SJJ Winder speed | 280m/min | 280m/min | 280m/min | 280m/min |
| SHW Winder speed | 400m/min | 400m/min | 400m/min | 400m/min |
| Tex.Range | 60-200tex | 60-200tex | 60-200tex | 60-200tex |
| Winder No.S | 280 | 340 | 410 | 480 |
| Power | 320KW | 350KW | 400KW | 450KW |
| Size | 40000×3500×2600 | 42000×3500×2600 | 45000×3500×2600 | 48000×3500×2600 |
| Weight | 30T | 35T | 40T | 48T |

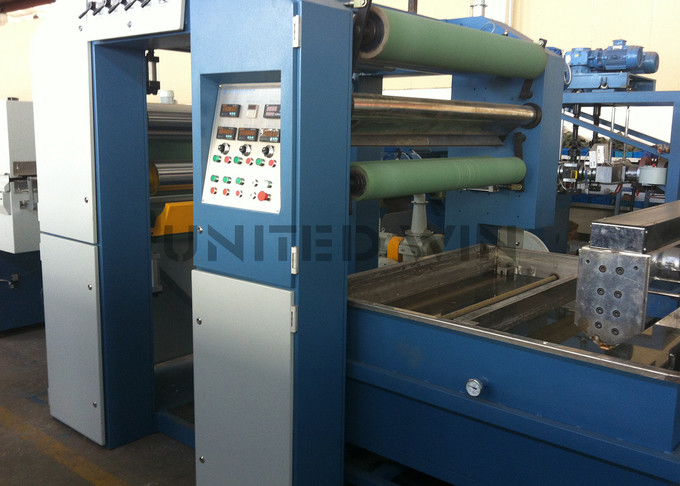

Machine Picture:
FAQ:
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
6. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
7. What is your terms of payment ?
30% T/T in advance ,balance before shipment.
