CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | SBY 850*6S |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 3 months |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets/ month |
| Name: | Circular Loom | Model: | SBY 850*6S |
|---|---|---|---|
| NO. Of Shuttle: | 6 Shuttles | MAX Width: | 300～850mm |
| Max. Open Widt: | 6500mm | Shuttle Speed: | 180-230r/min |
| NO. Of Warp: | 720pcs | Place Of Origin: | Changzhou,China |
| Voltage: | 380V, 50Hz | Warranty: | 2 Years |
| High Light: | jute sack circular loom Machine,Pp Woven Bag Making Machine Automatic,pp woven bag making machine manufacturer |
||

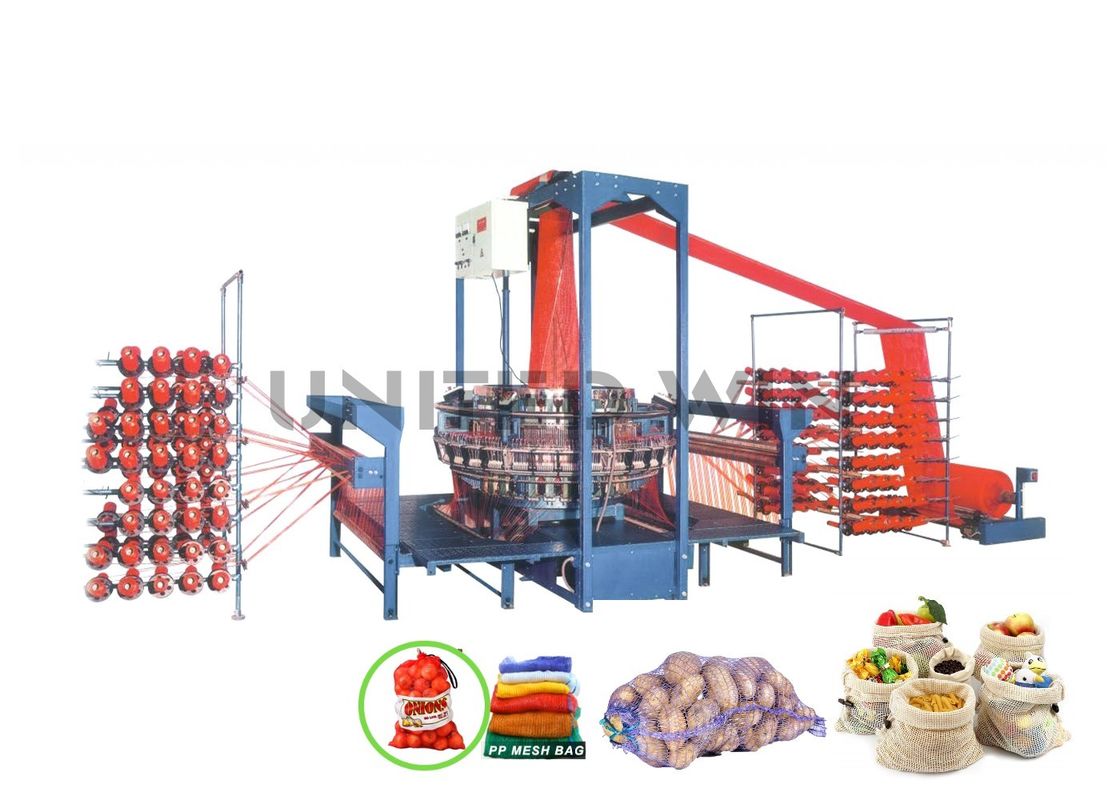

SBY-650X4 Four Shuttles Leno Mesh Bag Onion bag Circular Loom Machine
Description:
SBY series circular lloom, which adopts the SCM (Single Chip Microcomputer), carry out centralized control to the system; the parameter is set up and changed on HMI (Human Machine Interface). Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously. The function of accurate weft cloth compensate, can carrying on by weft density adjustment in time, improving fabric's quality and the qualification rate. Mechanical malfunction can be displayed in sub-area and recorded in detail. Users may conveniently process the production management and control the system in real time on the HMI.
Advanced mechanical structure, cam mechanism adopts advanced plane three-dimensional curve, swing rod lifting structure, no lubrication, smooth movement. Low energy consumption, low noise, greatly reduce production costs.
Perfect electrical control, electrical control system adopts PLC centralized control, double frequency speed regulation, PID closed-loop control, lifting and weaving, advanced man-machine dialogue screen displays all menu data, so that the equipment operation is simple and reliable.
Specifications:
| Item | SBY-650×4 | SBY-850X6H | SBY-1350×6 | SBY-2200×6 | SBY-2250×10 |
| Number of shuttles(pcs) | 4 | 6 | 6 | 6 | 10 |
| Folding width of cloth | 150-650mm | 300～850mm | 900-1350mm | 1500~2200mm | 1650~2250mm |
| Number of warp | 576 pcs | 720pcs | 1200pcs | 2880pcs | 2980pcs |
| weft density | 8-16(pcs/inch) | ||||
| Max. speed | 180r/min | 180-230r/min | 110r/min | 80r/min | 70r/min |
| Power of main motor | 2.2 KW | 3kw | 5.5 KW | 7.5kw | 10kw |
| Specification of Bobbin(ID×L) | Ф28-38×230mm/218mm | ||||
| Max.weft Bobbin diameter | Ф 100 | Ф 115 | Ф 90 | ||
| Overall dimension(L×W×H) | 8500×2500×2900 | 10500×2800×2920 | 10850×3000×3500 | 16480×3600×4580mm | 16480×3600×4580mm |
| Weight (about) | 2000kg | 2500kg | 4200kg | 8000kg | 9000kg |
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.
5.How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
