CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | United Win |
| Model Number: | SYL-6/2700 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 3 months |
| Supply Ability: | 5 sets/ month |
| Name: | Circular Loom Machine | NO. Of Shuttle: | 6 Shuttles |
|---|---|---|---|
| Max.width: | 1350 | Shuttle Speed: | 5~100r/min |
| NO. Of Warp: | 1512 | Material: | Plastic |
| Place Of Origin: | Changzhou,China | Voltage: | 380V, 50Hz |
| Warranty: | 1 Year | ||
| High Light: | 6 Shuttle Circular Loom,Polypropylene Bag Making Machine 7.5kw,polypropylene woven bag making machine |
||
SYL Series 6 Shuttle Circular Loom High Speed Plastic Woven Sack Production Line
Description:
SYL series circular lloom, which adopts the SCM (Single Chip Microcomputer), carry out centralized control to the system; the parameter is set up and changed on HMI (Human Machine Interface). Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously. The function of accurate weft cloth compensate, can carrying on by weft density adjustment in time, improving fabric's quality and the qualification rate. Mechanical malfunction can be displayed in sub-area and recorded in detail. Users may conveniently process the production management and control the system in real time on the HMI.
The Human-machine interface monitors and controls many important data in real time. The automation statistical data accurately displays on the LED screen. It is free from interruption by human factors, facilitating the production management. It could reduce the labor force in a great amount, especially to the volume-produce workshops, and gain more profits consequently.
Specifications:
| No.s | Mould | Shuttle Qty.(pcs) | Max.fold width(mm) | Max. Open width(mm) | Warp no.s(pcs) | Speed(RPM) | Main power(KW) |
| 1 | UWCL-24/16000 | 24 | 8200 | 16400 | 8000 | 5~25 | 37 |
| 2 | UWCL-20/11000 | 20 | 5500 | 11000 | 5376 | 5~28 | 22 |
| 3 | UWCL-16/8300 | 16(12) | 4150 | 8300 | 4800 | 5~41 | 18.5 |
| 4 | UWCL-12/7800 | 12(14) | 3900 | 7800 | 4400 | 5~41 | 18.5 |
| 5 | UWCL-12/7200 | 12(14) | 3600 | 7200 | 3780 | 5~45 | 18.5 |
| 6 | UWCL-12/6500 | 12 | 3250 | 6500 | 3520 | 5~51 | 11/15 |
| 7 | UWCL-12/6000 | 12(10) | 3050 | 6100 | 3200 | 5~51 | 11/15 |
| 8 | UWCL-12/5400 | 12(10) | 2700 | 5400 | 2880 | 5~64 | 11/15 |
| 9 | UWCL-10/4800 | 10(8) | 2400 | 4800 | 2880 | 5~64 | 11 |
| 10 | UWCL-10/4400 | 10(8) | 2200 | 4400 | 2640 | 5~72 | 7.5/11 |
| 11 | UWCL-8/3500 | 8 | 1750 | 3500 | 1976 | 5~80 | 7.5 |
| 12 | UWCL-6/3200 | 6(8) | 1600 | 3200 | 1920 | 5~80 | 7.5 |
| 13 | UWCL-6/2700 | 6 | 1350 | 2700 | 1512 | 5~100 | 7.5 |

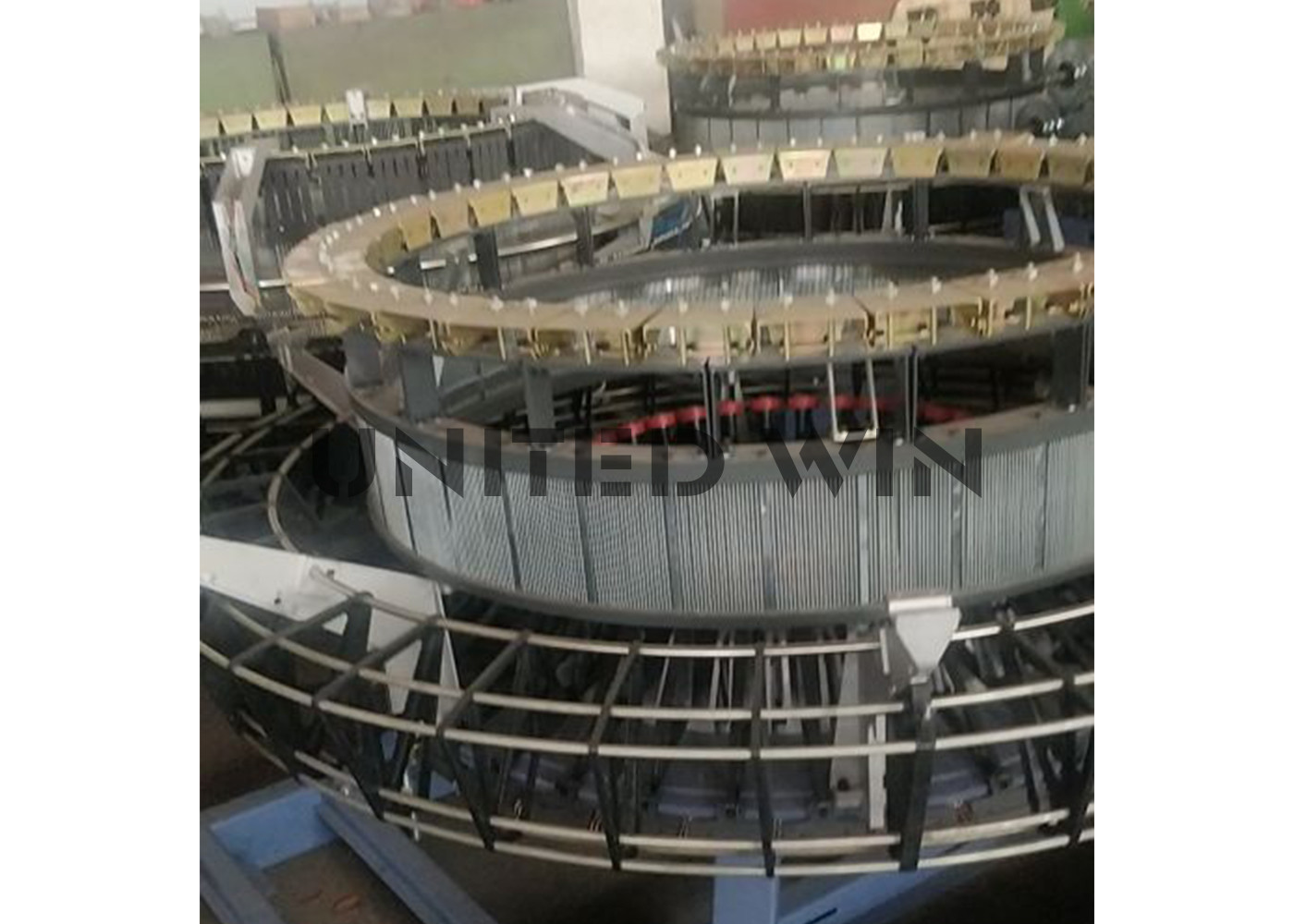

Machine Picture:
FAQ:
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
6. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
7. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.
Our engineers will take a solution video according your description.
