CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | United Win |
| Model Number: | UW |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 3 months |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3 sets/month |
| Name: | Plastic Tape Extrusion Making Machine | Voltage: | 380V |
|---|---|---|---|
| Automatic Grade: | Automatic | Material: | PP Woven Bag |
| Machine Type: | PP/PE Extrusion Machine | Bag Type: | PP Woven Bag,cement Bag,Fruit Bag |
| Place Of Origin: | Jiangsu, China | Marketing Type: | New Product 2020 |
| Warranty: | 1 Year | ||
| Highlight: | plastic extrusion tape drawing machine,polypropylene bag extrusion line,flat film tape extruder machine |
||
Plastic Extrusion Tape Extrusion Line High Quality Polypropylene Fibre Bag Woven Bag
Description:
Plastic flat-film wire drawing machine is newly developed on the basis of introducing, digesting and absorbing advanced technologies at home and abroad. The internationally advanced electrical digital simulation control technology, such as microcomputer controlled variable frequency speed regulation and SCR DC speed regulation, is adopted to make the main indexes of the unit reach the international advanced level, with high production efficiency and good filament tube forming quality. In addition, the advanced belt-type net-changing structure can be installed according to different needs, and the fiberizing mechanism ( flexible packaging bags or production of fiberized sewing thread ) can be added.
Plastic wire drawing machine has two kinds of heating structure of hot air drawing air box or electric heating rice, which can be used for more choices and a wide range of applications. It can be used for the forming and processing of flat filaments of polypropylene, high density polyethylene, linear low density polyethylene and other products.
Specifications:
| Item | SJPL-Z90×33-SM900 | SJPL-Z110×33-SM1100 | SJPL-Z120×33-SM1300 | SJPL-Z130×33-SM1500 |
| Max.Extrusion | 280kg/h | 320kg/h | 420kg/h | 500kg/h |
| Screw Dia. | Φ90mm | Φ110mm | Φ120mm | Φ130mm |
| scew RPM. | 20-100r/min | 20-100r/min | 20-100r/min | 20-100r/min |
| T Die Head Lip length | 900mm | 1100mm | 1300mm | 1500mm |
| SJJ Winder speed | 280m/min | 280m/min | 280m/min | 280m/min |
| SHW Winder speed | 400m/min | 400m/min | 400m/min | 400m/min |
| Tex.Range | 60-200tex | 60-200tex | 60-200tex | 60-200tex |
| Winder No.S | 280 | 340 | 410 | 480 |
| Power | 320KW | 350KW | 400KW | 450KW |
| Size | 40000×3500×2600 | 42000×3500×2600 | 45000×3500×2600 | 48000×3500×2600 |
| Weight | 30T | 35T | 40T | 48T |

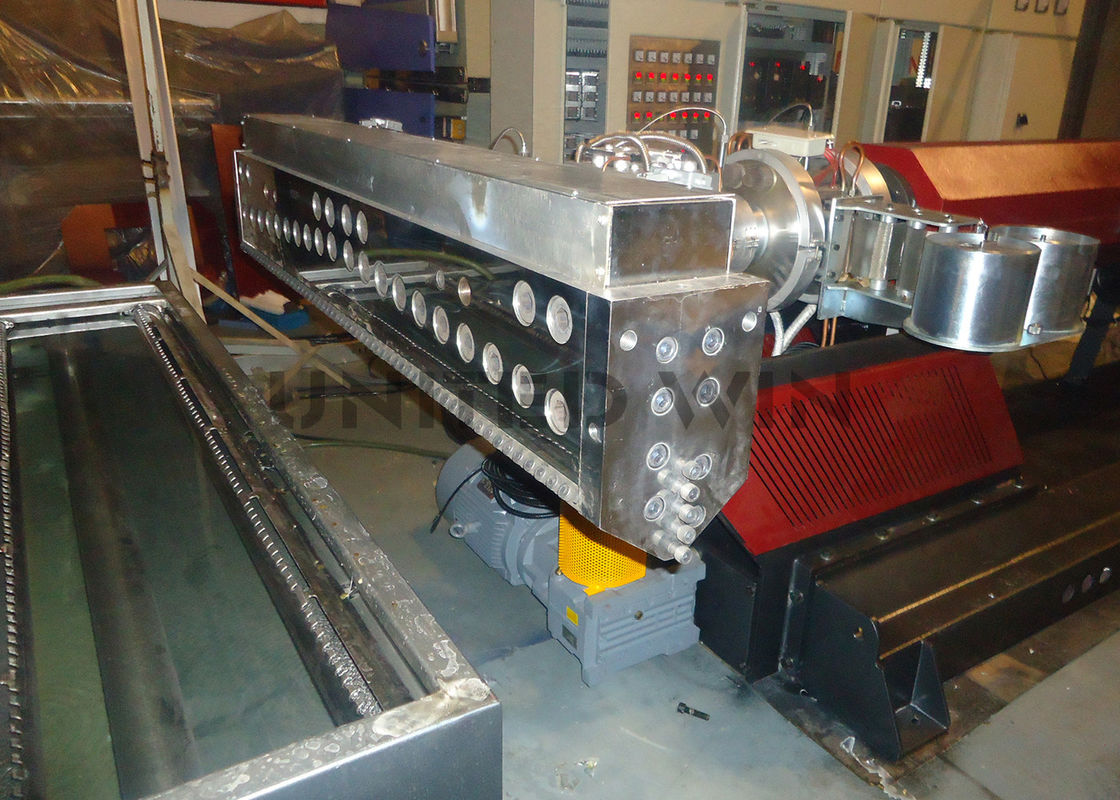

Machine Photos:
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 20~30days, however, based on order.
4. Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5. what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.
6. Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumboroll paper,start the machine and cutting the paper. And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us . And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
7. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
8. Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
