Place of Origin: | CHINA |
---|---|
Brand Name: | United Win |
Model Number: | UW026T-5 |
Minimum Order Quantity: | 1 set |
Price: | USD |
Packaging Details: | Wooden case |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Sets/Month |
Name: | Bursting Strength Tester | Test Products: | Geotextiles, Geosynthetic Materials |
---|---|---|---|
Tension S50000Nensor Range: | 50000N | Force Measurement Accuracy: | <±0.5% |
Clamping Distance: | 25~500mm(stepless Adjustable) | Tensile Speed: | 0.5~500mm/min (stepless Adjustable) |
Elongation Resolution: | 0.01mm | Equipment Dimensions: | 750×360×1680mm (L×W×H) |
Condition: | New | Warranty: | 1 Year |
High Light: | Computer Control Tensile Bursting Strength Tester,50000 N Tensile Bursting Strength Tester,Tensile Bursting Strength Tester 500mm |

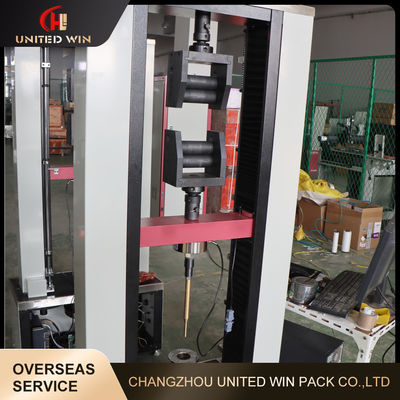

Computer Control Material Tensile Bursting Strength Tester For Geotextiles
Performance Characteristics:
UW026T-5 Bursting strength tester is used to measure the breaking strength, elongation at break, top breaking, piercing tearing of geotextiles, geosynthetic materials and other products. Seams and other functions, the equipment must be connected to the computer, the user can choose to match the computer or the manufacturer's matching computer.
UW026T-5 Bursting strength tester according to the principle of constant elongation (CRE) determination, the whole process is controlled by computer, and record the curve dynamic changes and breaking strength, breaking elongation (elongation), time, times, etc.
Feature:
Main Technical Parameters:
Test products |
geotextiles, geosynthetic materials |
Tension sensor range |
50000N |
Force measurement accuracy |
< ±0.5% |
Clamping distance |
25 ~ 500mm(stepless adjustable) |
Tensile speed |
0.5 ~ 500mm/min (stepless adjustable) |
Elongation resolution |
0.01mm |
Equipment dimensions |
750×360×1680mm (L×W×H) |
Printing |
breaking strength, breaking strength, breaking elongation, breaking elongation, breaking time all kinds of data, curves and statistical results |
Applications:
FAQ:
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
6. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
