CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Name: | New Yarn Doubling And Twisting Machine Twisted Brush Machine For Yarn ASRT140 | Spindle NO.: | 14 |
|---|---|---|---|
| Spindle Distance: | 180mm | Ring Diameter: | φ140*25.4mm |
| Spindle Speed: | 3000r/min | Twist Direction: | S/Z |
| Twist Range: | 55-619t/m | Up-down Length: | 203mm |
| Operating Method: | Double Side | Motor Power: | 18.5KW |
| Highlight: | filament yarn twisting machine,Yarn Doubling And twisting machine 18.5KW,monofilament yarn twisting machine |
||

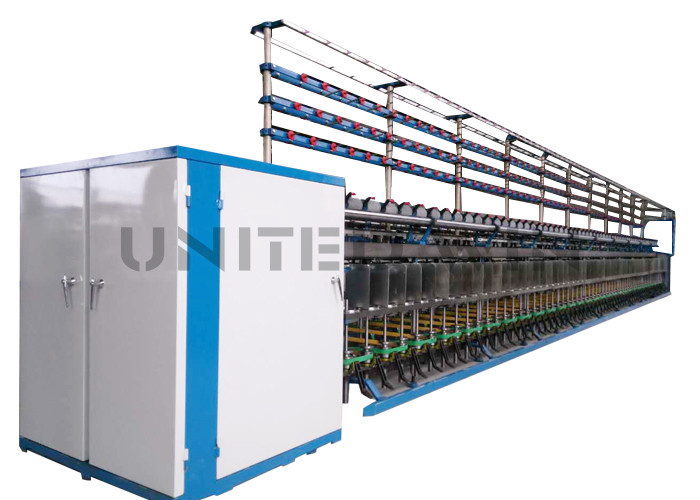

New Yarn Doubling And Twisting Machine Twisted Brush Machine For Yarn ASRT140
The machine can twist different size of PP, PE, Polyester, Nylon, Cotton single strand or multi-strands twisted yarn, which is widely used in various fields, such as rope, net, twine, webbing, curtain fabrics, etc. The PLC control system makes it adjust technology, direction of twist, speed and molding shape easily. The machine has the characteristics of economic applicability.
* Easy to operate and maintain
* High efficiency and output
* Low noise and power consumption
Specification
| Mould code | ASRT100 | ASRT140 | ASRT160 | ASRT200 | ASRT250 | ASRT250-A | ASRT280 | WLRT250 | |
| Spindle Number | 184 | 144 | 100 | 72 | 15 | 42 | 40 | 12 | |
| Spindle Distance | 140mm | 180mm | 200mm | 280mm | 340mm | 340mm | 380mm | 380mm | |
| Ring Diameter | Φ100×16.8mm | Φ140×25.4mm | Φ165×25.4mm | Φ204×38.1mm | Φ254×38.1mm | Φ254×38.1mm | Φ280×38.1mm | Φ254×38.1mm | |
| Spindle Speed | 3000-5000r/min | 2000-3000r/min | 1800-2300r/min | 1800-2100r/min | 1800-2300r/min | 2000-4000r/min | |||
| Twist Direction | S/Z | ||||||||
| Up-down Length | 200or 300mm | 200or 300mm | 300mm | 300mm | 300mm | 300mm | 400mm | 550mm | |
| Twist Range | 76~862t/m | 55~619t/m | 55~619t/m | 35~403t/m | 32~270t/m | 35~403t/m | 35~403t/m | 20~600t/m | |
| Operating Method | Double side | Double side | Double side | Double side | Single side | Double side | Double side | Single side | |
| Motor Power | 15KW | 18.5KW | 18.5KW | 22KW | 7.5KW | 22KW | 22KW | 15KW | |
| Overall size | 14.8×1.2×2m | 14.96×1.2×2m | 11.82×1.2×2m | 11.97×1.3×2.1m | 7.63×1.1×2.1m | 9.06×1.4×2.1m | 9.61×1.75×2.3m | 5.8×1.6×2.3m | |
| yarn count | Ne 21/2~18 | Ne 21/3~38 | Ne 21/5~45 | Ne 21/8~150 | Ne 21/8~170 | ||||
| Fibre Denier | 250D~2000D | 1500D~5000D | 1500D~6000D |
600D- 13000D |
650D~15000D | ||||
| PE |
36tex 3~10 |
36tex 3~25 |
36tex 10~40 |
36tex 20~90 |
36tex 30~110 |
||||
Appllication:
FAQ:
1. Does one machine can only produce one size?
Not exactly, it depends on the machine.
2. Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed
3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4. What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6. You are trade company or factory?
We are Manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
