CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | UW-C11 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Name: | Single Knife Single Shaft Cutting Machine | Model: | UW-C11-13 |
|---|---|---|---|
| Min. Width: | 1300mm | Min. Cutting Width: | 3mm |
| Paper Tube ID: | Ø25~76mm | Max. Cutting Dia.: | Ø250mm |
| Cutting Speed: | 3~10pc/min | Air Pressure: | 6kg/cm² |
| Total Power: | 6KW | Dimension (L×W×H): | 3000X1300X1500mm |
| Place Of Origin: | China | Warranty: | 1 Year |
| High Light: | PET PE Adhesive Tape Cutting Machine,Single Knife Shaft Cutting Making Machine,1300mm Adhesive Tape Making Machine |
||

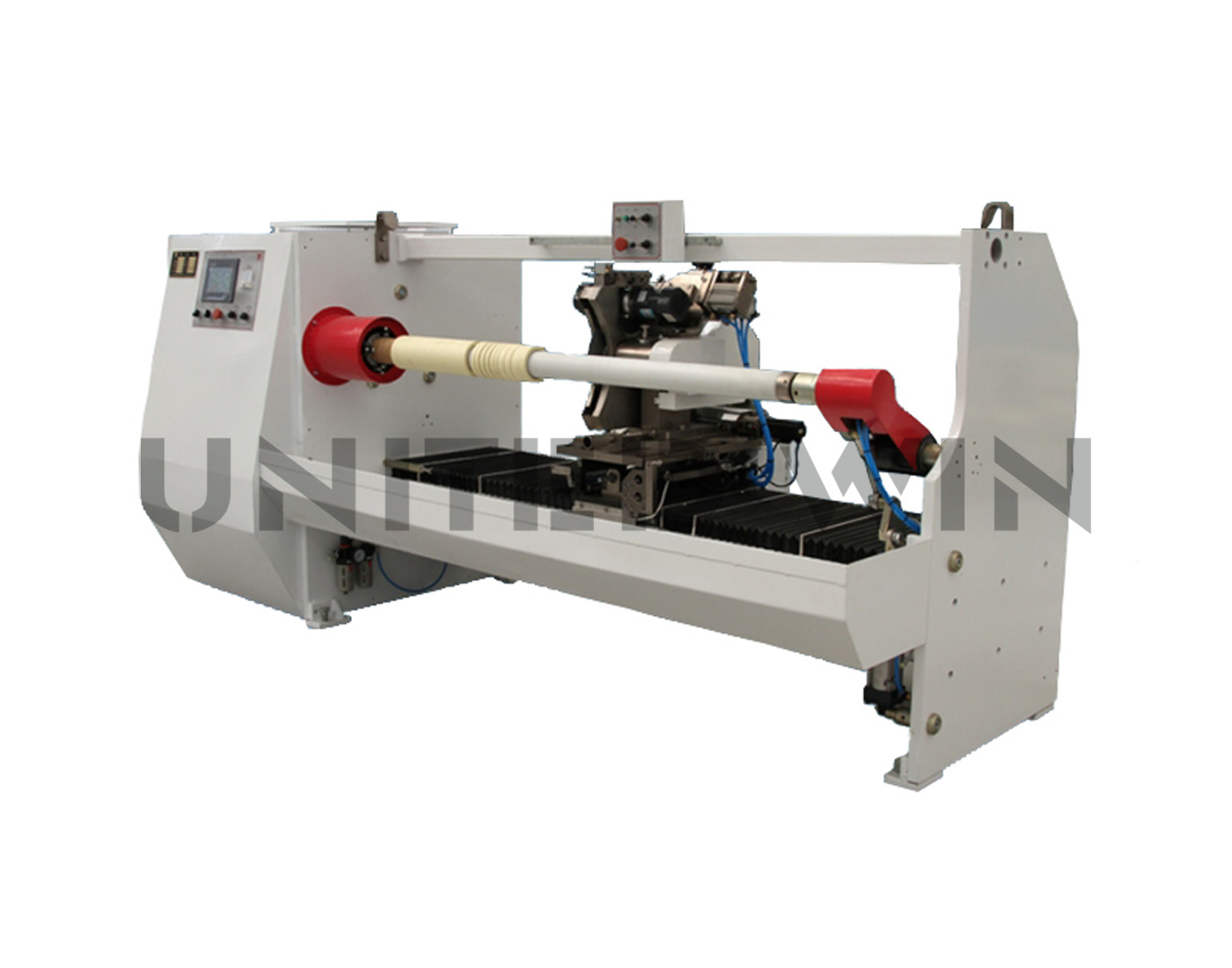

PET PVC PE Adhesive Tape Single Knife Single Shaft Cutting Making Machine For Foam Tape
Features:
1. Cutting width can be freely set up with high cutting precision.
2. Servo motor drive for transverse moving.
3. PLC control, touch screen operating, can set parameters freely.
4. Circular knife is driven by motor, main shaft speed stepless adjustable by frequency convcrting.
5. Circular knife angle is adjusted manually or by servo motor and the knife-feeding is controller by hydraulic or servo motor.
6. Equipped with circular knife cooling system.
Technical parameters:
| Model | C11-13 | C11-16 | C11-20 |
| Min. Width (mm) | 1300 | 1600 | 2000 |
| Min. Cutting Width (mm) | 3 | 3 | 3 |
| Paper Tube ID (mm) | Ø25~76 | Ø76 | Ø76 |
| Max. Cutting Dia. (mm) | Ø250 | Ø250 | Ø250 |
| Cutting Speed (pc/min) | 3~10 | 3~10 | 3~10 |
| Air Pressure (Kg/cm²) | 6 | 6 | 6 |
| Total Power (KW) | 6 | 6 | 6 |
| Dimension (L×W×H)(mm) | 3000X1300X1500 | 3300X1300X1500 | 3800X1300X1500 |
Application:
Suitable for cutting double sided tape, kraft paper, masking tape, foam tape, PET, PVC, PE, and cloth tape etc.
Company Information:
FAQ:
1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.
2. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.
3. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.
4. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.
Machine: please provide the type of machine required and other special requirements.
5. Do you control the items quality?
Each machine strictly tested one by one before shipping.
6. How long is the delivery time for your machine?
After deposit is about 30 days.
7. What is quality guarantee policy?
12 months guarantee for all goods from our company, but we do not accept any broken by man.
8. When we receive the box, find any items missing or defective, how should we do?
Please contact us ASAP, we will check and give you best solution soon.
