CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | UW-F03 120 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Name: | Super Clear Slitting Machine | Model: | UW-F03 120-16 |
|---|---|---|---|
| Effective Width(mm): | 1600 | Max. Unwinding Dia.(mm): | Ø800 |
| Max. Rewinding Dia.(mm): | Ø150 | Rewinding Shaft Dia.(mm): | φ76(3”) |
| Mechanical Speed(m/min): | 150 | Total Power (kw): | 6 |
| Dimension(LxWxH)(mm): | 2800*2800*1400 | Warranty: | 1 Year |
| Place Of Origin: | China | ||
| Highlight: | OPP Soundless Tapes Slitting Machine,Super Clear Adhesive Tape Slitting Machine,Pneumatic Tension Control Tapes Slitting Machine |
||

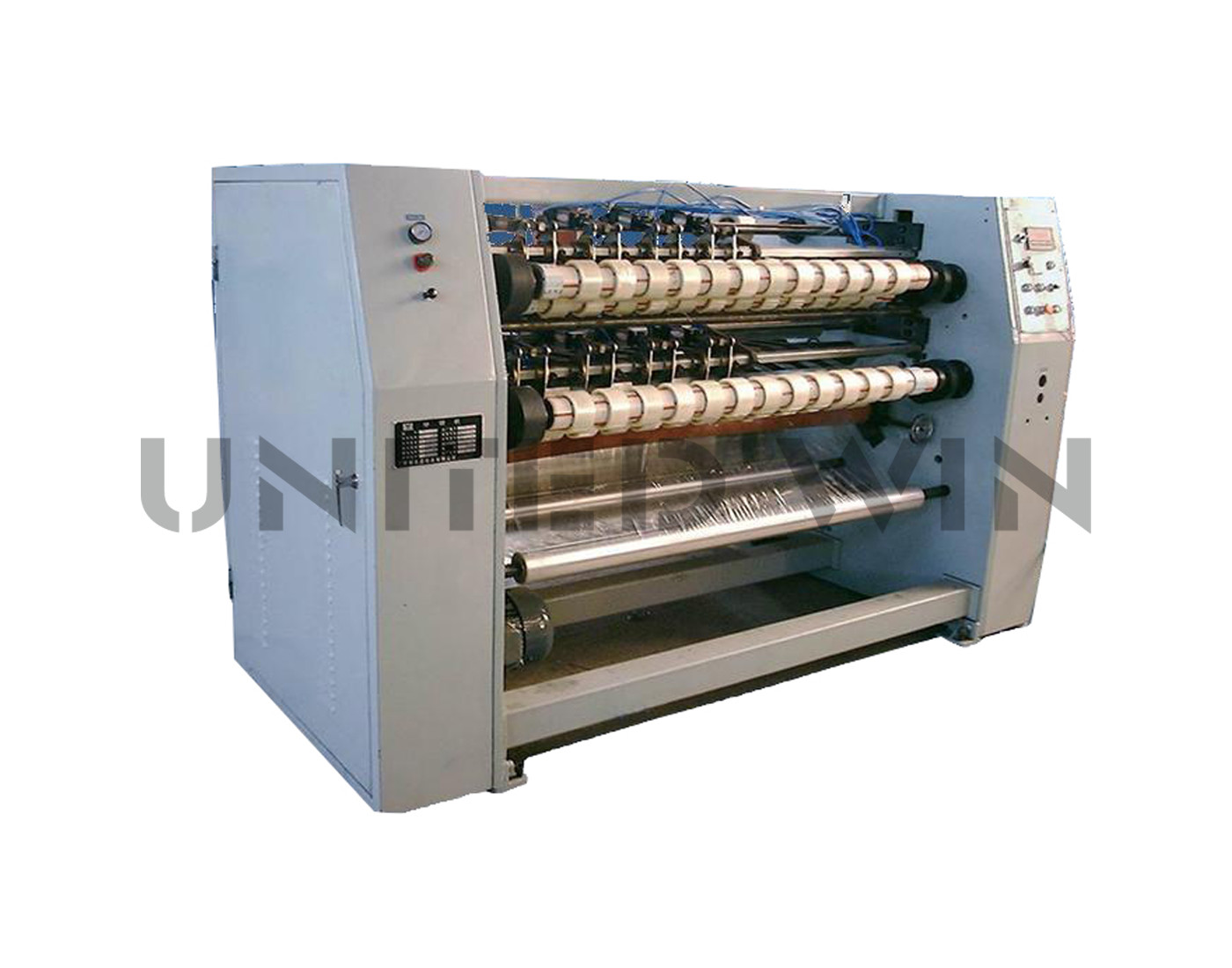

BOPP Adhesive Tape Low Noise Slitting Making Machine For PET Tape UW-F03 120
Features:
1. Stepless frequency timing for whole machine.
2. Pneumatic tension control for unwinder.
3. Independent pressure roller on each slitting roll, the tension is controlled by plastic cores to achieve the finished products transparent.
4. Auto tab device and low noise cover are optional.
Technical parameters:
| Model | F03 120-13 | F03 120-16 |
| Effective Width (mm) | 1300 | 1600 |
| Max. unwinding dia.(mm) | Φ800 | Ø800 |
| Max. rewinding dia.(mm) | Ø150 | Ø150 |
| Rewinding shaft dia.(mm) | Ø76(3”) | Ø76(3”) |
| Mechanical speed(m/min) | 150 | 150 |
| Total power (kw) | 4.5 | 6 |
| Dimension(LxWxH)(mm) | 2800*2500*1400 | 2800*2800*1400 |
Application:
Suitable for slitting and rewinding OPP soundless super clear tapes.
Company Information:
FAQ:
1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.
2. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.
3. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.
4. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.
Machine: please provide the type of machine required and other special requirements.
5. Do you control the items quality?
Each machine strictly tested one by one before shipping.
6. How long is the delivery time for your machine?
After deposit is about 30 days.
7. What is quality guarantee policy?
12 months guarantee for all goods from our company, but we do not accept any broken by man.
8. When we receive the box, find any items missing or defective, how should we do?
Please contact us ASAP, we will check and give you best solution soon.
