CHANGZHOU UNITED WIN PACK CO.,LTD
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | unitedwin |
| Model Number: | UW-C1320/C1620 |
| Minimum Order Quantity: | 1 set |
| Price: | USD |
| Delivery Time: | 3 months |
| Supply Ability: | 3 sets/ month |
| Name: | Single Knife Double Shaft Cutting Machine | Type: | UW-C1320/C1620 |
|---|---|---|---|
| Effective Width: | 1300/1600mm | Power: | 7 Kilowatt |
| Dimension(LxWxH): | 3000x1300x1500mm | Control: | PLC Control With Touch Screen |
| Utomatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | ||
| High Light: | face mask machine kn95,face mask machine n95,face mask machine 3 ply |
||

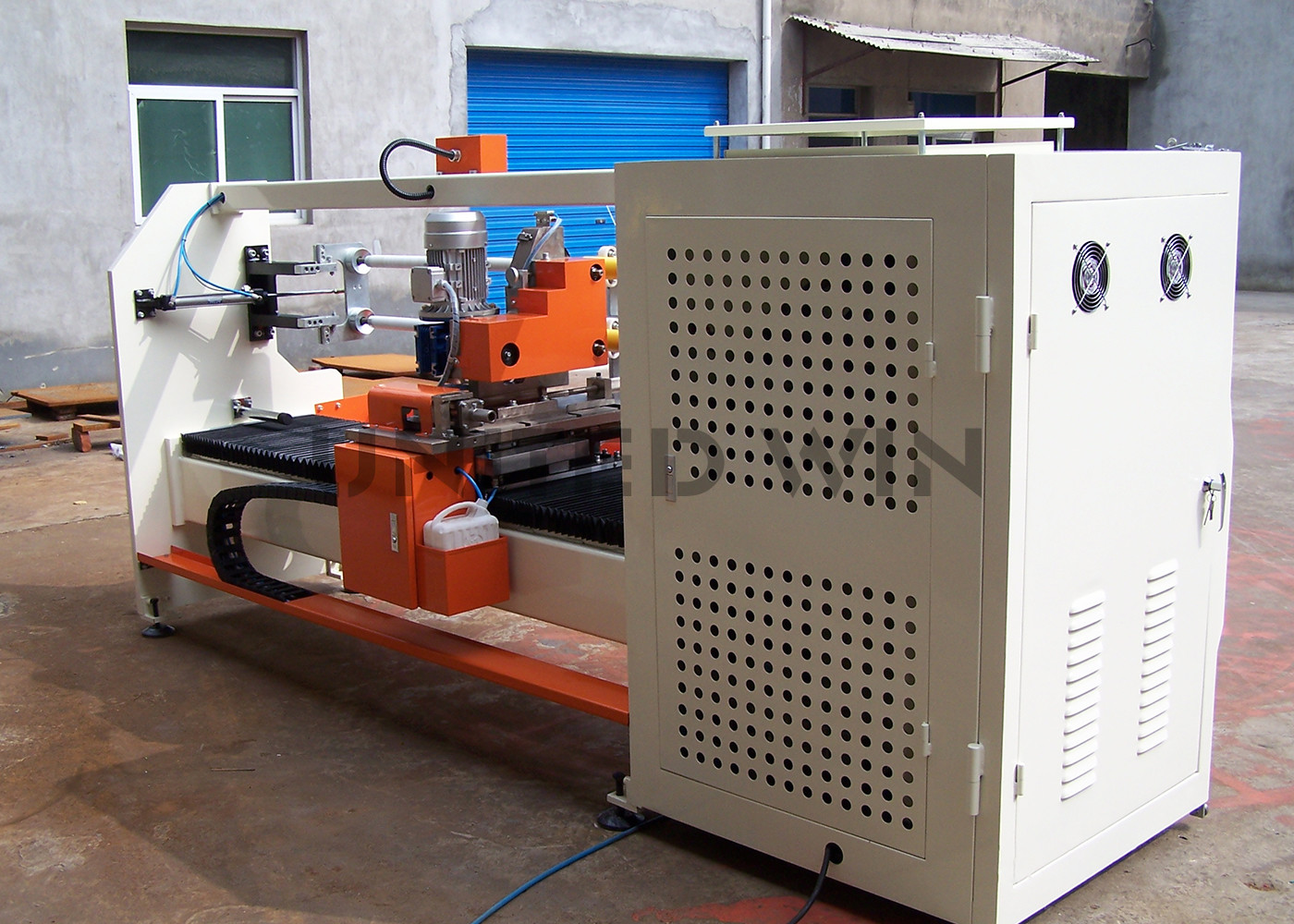

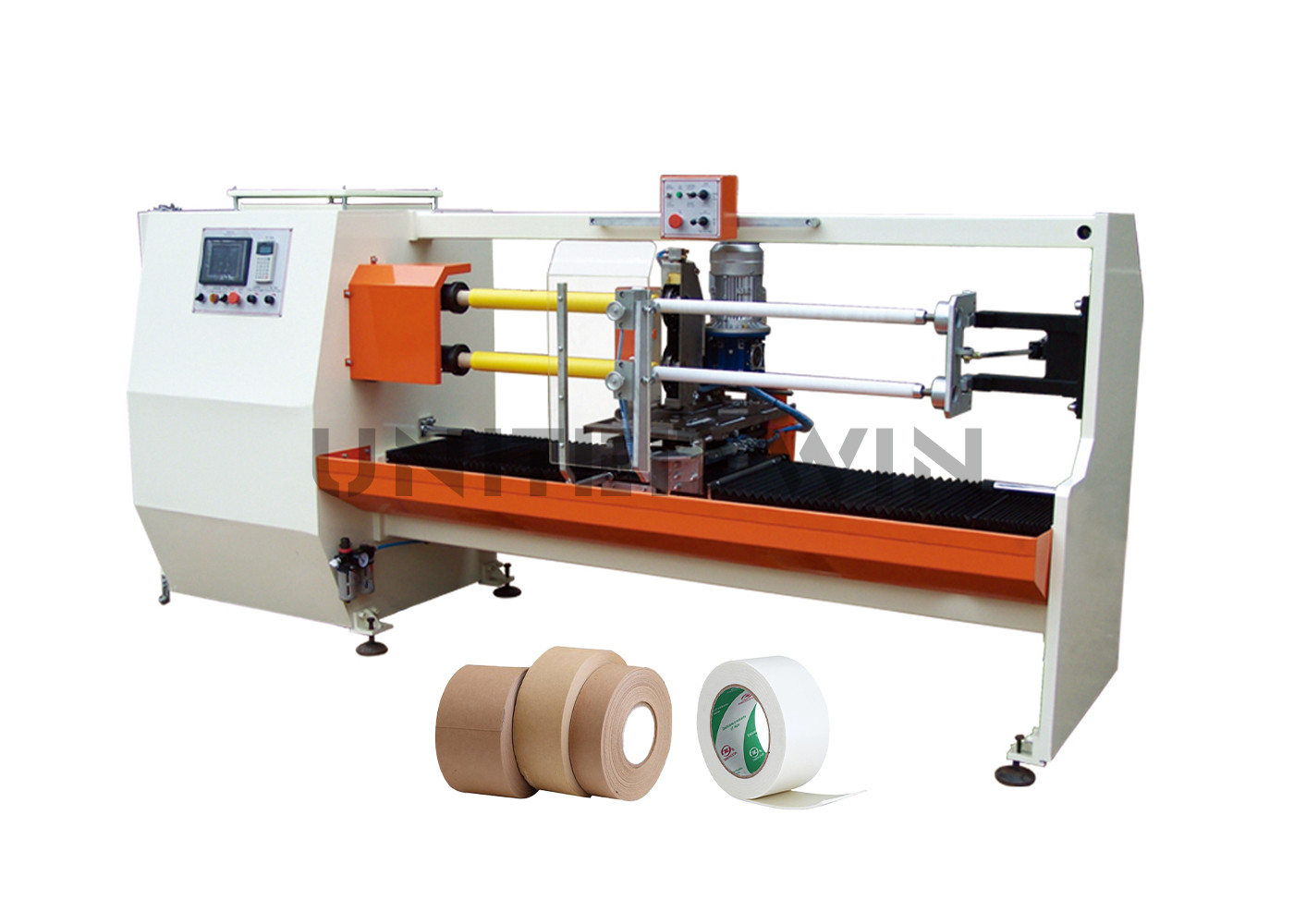

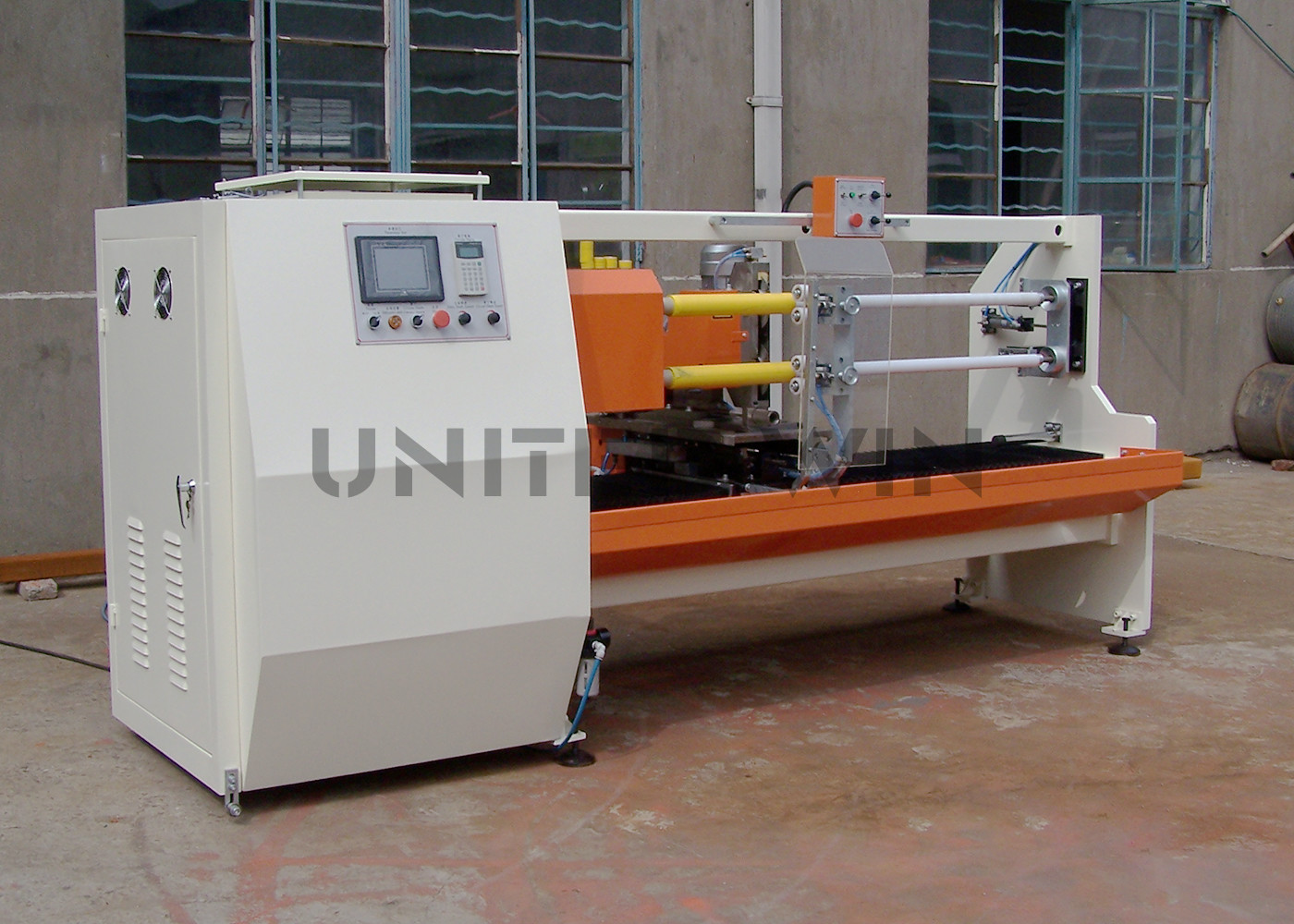

Single Knife double shaft cutting machine FM-C1320/C1620 Self Adhesive Tape Manufacturing Machine
Feartures:
1. Single knife and double shafts for high cutting efficiency
2. Servo motor driving, random cutting width within precision.
3. PLC with touch screen, easy operation and maintenance
4. Servo/hydraulic knife feeding, auto spraying for knife lubrication, neat cutting edge
5. With circular knife, stepless speed adjustable of main shaft by frequency converting, suitable for different kinds of material
6. Angle of circular knife can be adjusted manually/automatically Equip with cooling system for circular knife.
Application:
Suitable for cutting of double sided tape / kraft paper/ masking tape/foam tape /PET /PVC / PE/ cloth base material etc.
Specifications:
Xuzhou Daisun Machinery Co., ltd, We are the professional manufacturer for BOPP adhesive tape making machine, bopp tape slitting machine, Adhesive tape making machine, Adhesive tape cutting machine, adhesive tape slitting machine, masking tape making machine, gum tape making machine, pvc electrical tape cutting machine, bopp gum tape coating machine, bopp tape slitter rewinder machine, adhesive tape production line, machine to manufacture adhesive tape, adhesive tape rewinding machine, paper core making machine, BOPP tape packing machine
Main Technical Parameters:
| Model | UW-C1320 | UW-C1620 |
| Effective width | 1300mm | 1600mm |
| Max.Unwinding dia. | 3mm | 3mm |
| ID of paper tube | 25-76mm | 76mm |
| Max.cutting dia | 150mm | 150mm |
| Cutting speed | 3~10m/min | 3~10m/min |
| Air pressure | 8kg/c㎡ | 8kg/c㎡ |
| Total power | 7KW | 7KW |
| Dimension(LxWxH) | 3000*1300*1500mm | 3000*1300*1500mm |
Applications:
FAQ:
1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.
2. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.
Machine: please provide the type of machine required and other special requirements.
3. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.
4. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.
5. What is the payment?
30% TT as deposit before production,70% TT after copy of B/L.
6. What is quality guarantee policy?
12 months guarantee for all goods from our company, but we do not accept any broken by man.
7. When we receive the box, find any items missing or defective, how should we do?
Please contact us ASAP, we will check and give you best solution soon.
8. Do you control the items quality?
Each machine strictly tested one by one before shipping.
9. How long is the delivery time for your machine?
After deposit is about 30 days.
